The X0 cassette, with its X-SYNC technology and cassette mapping, allows for seamless shifts even when under the heaviest load. The X0 Transmission DUB crankset is a remarkable all-aluminum design that perfectly balances stiffness and weight, making it one of the lightest aluminum cranksets available.
The new Transmission Flattop Transmission chain features a Dark Polar finish specific to X0 and comes with a PVD coating for unbeatable resistance to wear and corrosion, making it fully approved for E-MTB use with solid pins. For more rugged terrain, the X0 rings are compatible with removable bash guard(s).
The AXS Pod ultimate controller, with its "click and fire" two-button design, transforms the rider's input into a highly personal experience for all AXS controls.
Please visit the to ensure that your bike is compatible with this SRAM Eagle Transmission groupset.

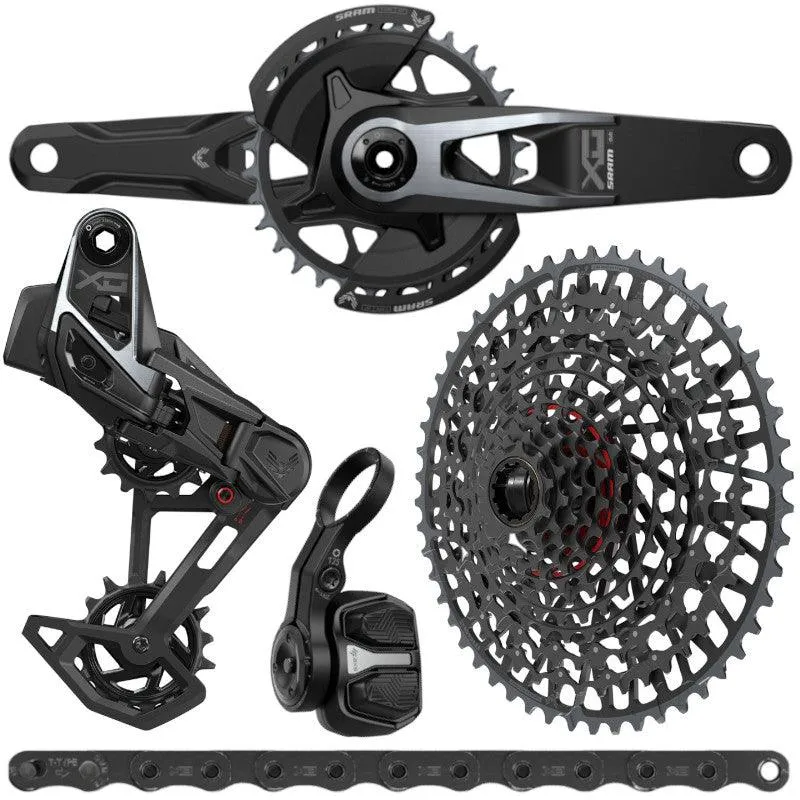

X0 Groupset includes:
| Model: | FC-X0-D1 |
| Chainline: | 55.0mm |
| Hub: | Boost (148mm), SuperBoost (157mm) |
| Chainring: | 32 teeth |
| Material: | Aluminum |
| Bashguard: | Removable (Included) |
| Spindle: | DUB |
| Weight: | N/A |
SRAM Eagle Transmission features a SRAM MTB WIDE crank with a 55mm chain line while using the Boost 148mm Over-Locknut Dimension hub standard. Eagle Transmission cassettes move outboard by 2.5mm to optimize for this wider, 55mm chain line. For bikes with SuperBoost 157mm hubs, a 55mm chain line crank can be used. For bikes with a 142mm hub spacing, a 52mm crank must be used.
| Model: | RD-X0-E-B1 |
| Max Cassette Teeth: | 52t |
| Material: | Aluminum |
| Weight: | 475 grams |
| Model: | CS-XS-1295-A1 |
| Gear Range: | 10-52t |
| Cog Sizes 10-52t: | N/A |
| Freehub Interface: | SRAM XD |
| Material: | Steel |
| Weight: | 380 grams |
| Model: | EC-AXS-POD-B1 |
| Shifter Type: | Electronic |
| Clamp: | N/A |
| Weight: | 48 grams |
| Model: | CN-TTYP-X0-A1 |
| Material: | Steel |
| Weight: | 256 grams |
AXS and
DUB Wide bottom bracket not included.
SRAM Eagle Transmission AXS Compatibility:
The SRAM X0 Eagle Transmission AXS Groupset is compatible with the following:
| Frameset: | Any frame that fulfills the “UDH Specification” featuring a hanger-less interface can be upgraded. The lists all UDH bikes that are compatible with Eagle Transmission. |
| Battery: | |
| Bottom Bracket: | SRAM DUB "Wide": , , , , , BSA MTB68SP |
| Chain: | , , or Eagle Transmission chains |
| Chainring: | , , or Eagle Transmission chainring |
| Cassette: | , , or Eagle Transmission cassette |
| Controller: | , |
| Crankset: | , , or Eagle Transmission cranksets |
| Freehub: | SRAM XD compatible freehubs |
| PowerLock: | Eagle Transmission only |
| Rear Derailleur: | , , or Eagle Transmission rear derailleur |
SRAM Eagle Transmission is not compatible with previous-generation Eagle components. However, Eagle Transmission T-Type chainrings are backward compatible with Eagle chains, so they can be used on the current Eagle drivetrains. Non-T-Type Eagle chainrings will not work with Eagle Transmission chains.
