Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Body Style | Disc |
| Current Rating | 15 A |
| Current, Switching | 15 A |
| Dimensions | 1.23" L x 1.32" W x 0.37" H |
| Function | Thermostat |
| Maximum Operating Temperature | 169 °C |
| Measurement Range | 169 degC |
| Minimum Operating Temperature | 157 °C |
| Mounting Style | Snap Action |
| Mounting Type | Panel Mount |
| Output | NC |
| Sensing Mode | Open on Rise |
| Series | |
| Standards | UL Listed and CSA Certified, VDE Approved |
| Supply Voltage | 120/240 VAC |
| Technology | Thermal Conductive |
| Temperature, Close | 315 F (157.2 C) |
| Temperature, Open | 335 F (168.3 C) |
| Termination | QC Tabs |
| Thermostat Type | Disc |
| Type | Thermostat |
| Voltage, Switching | 240 VAC |
Overview

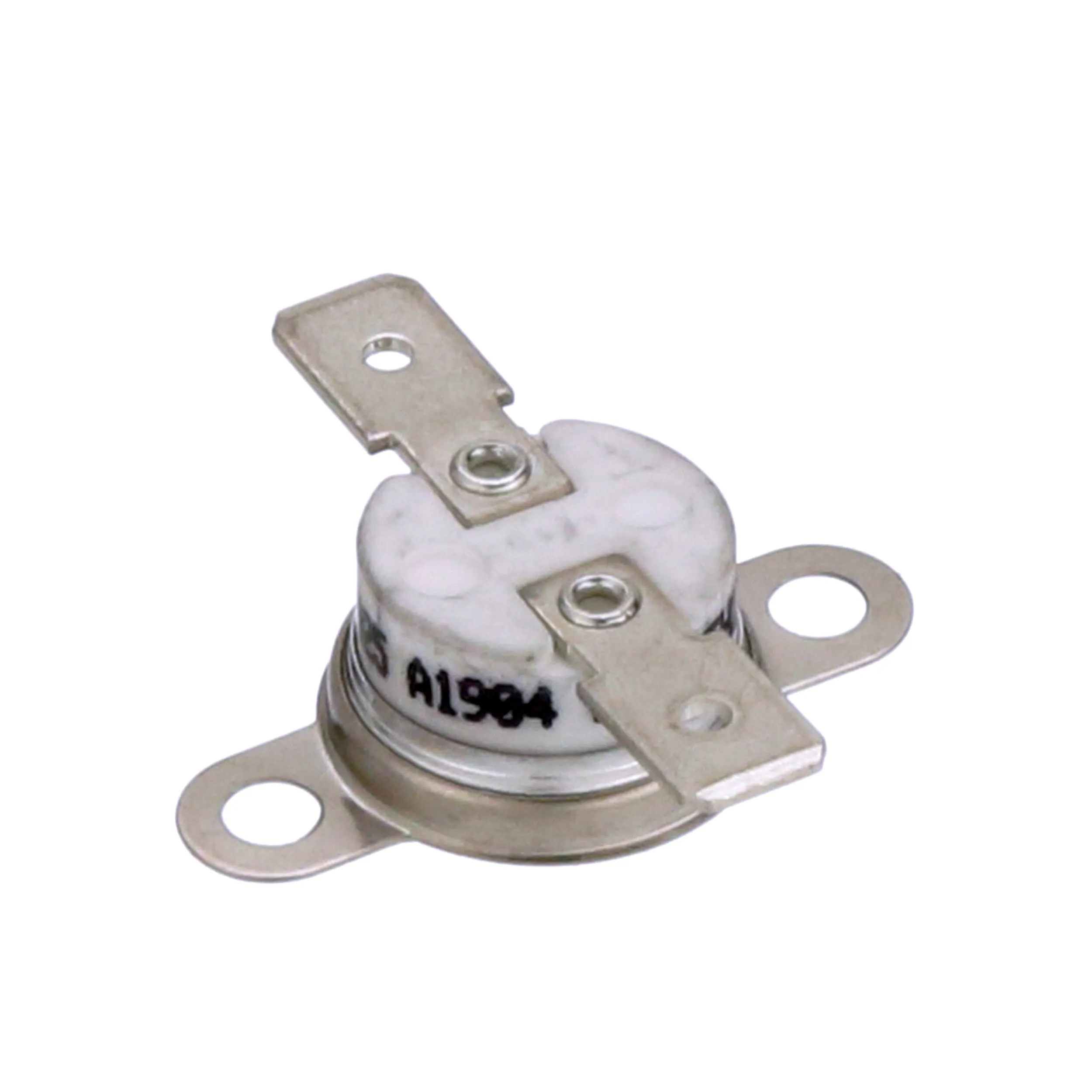

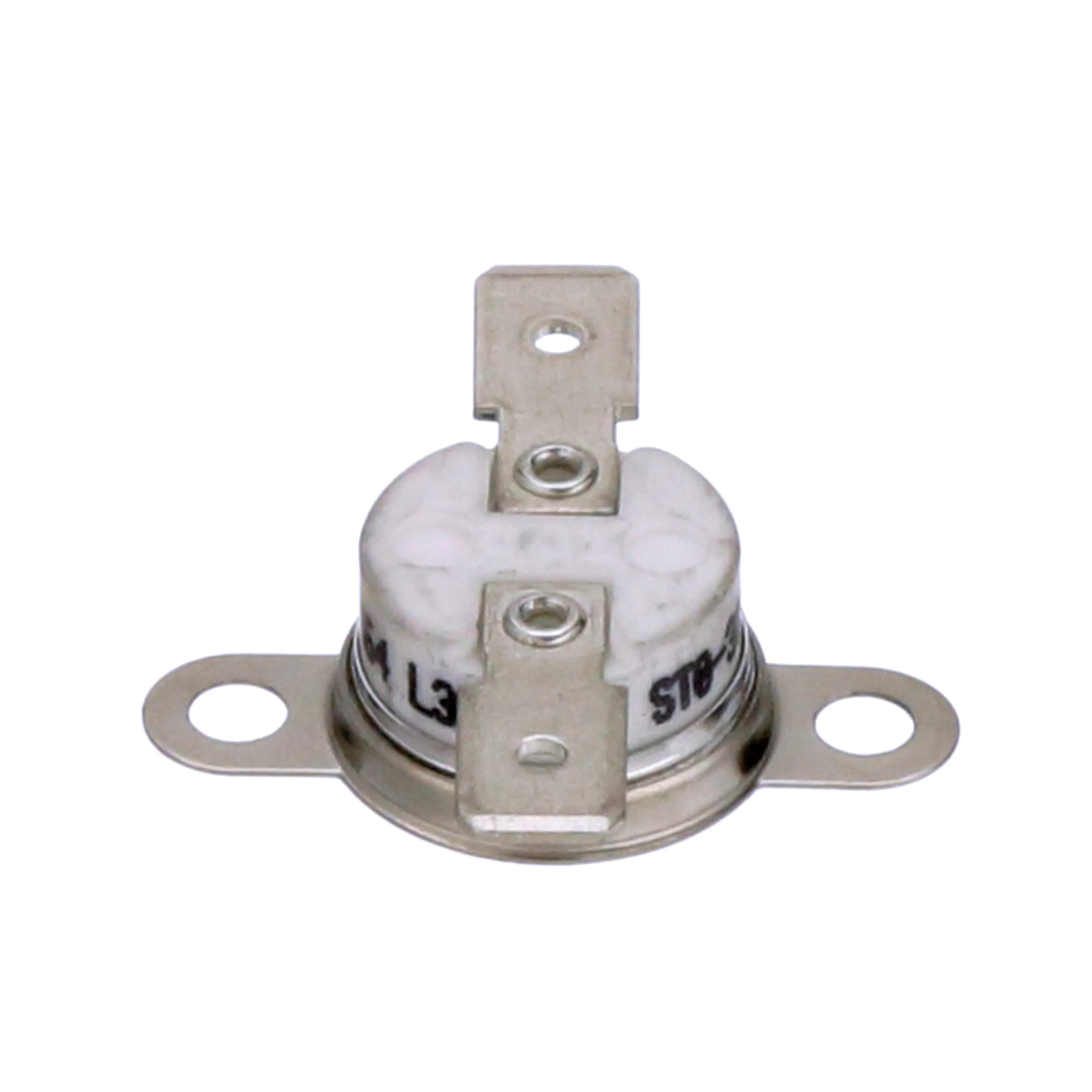

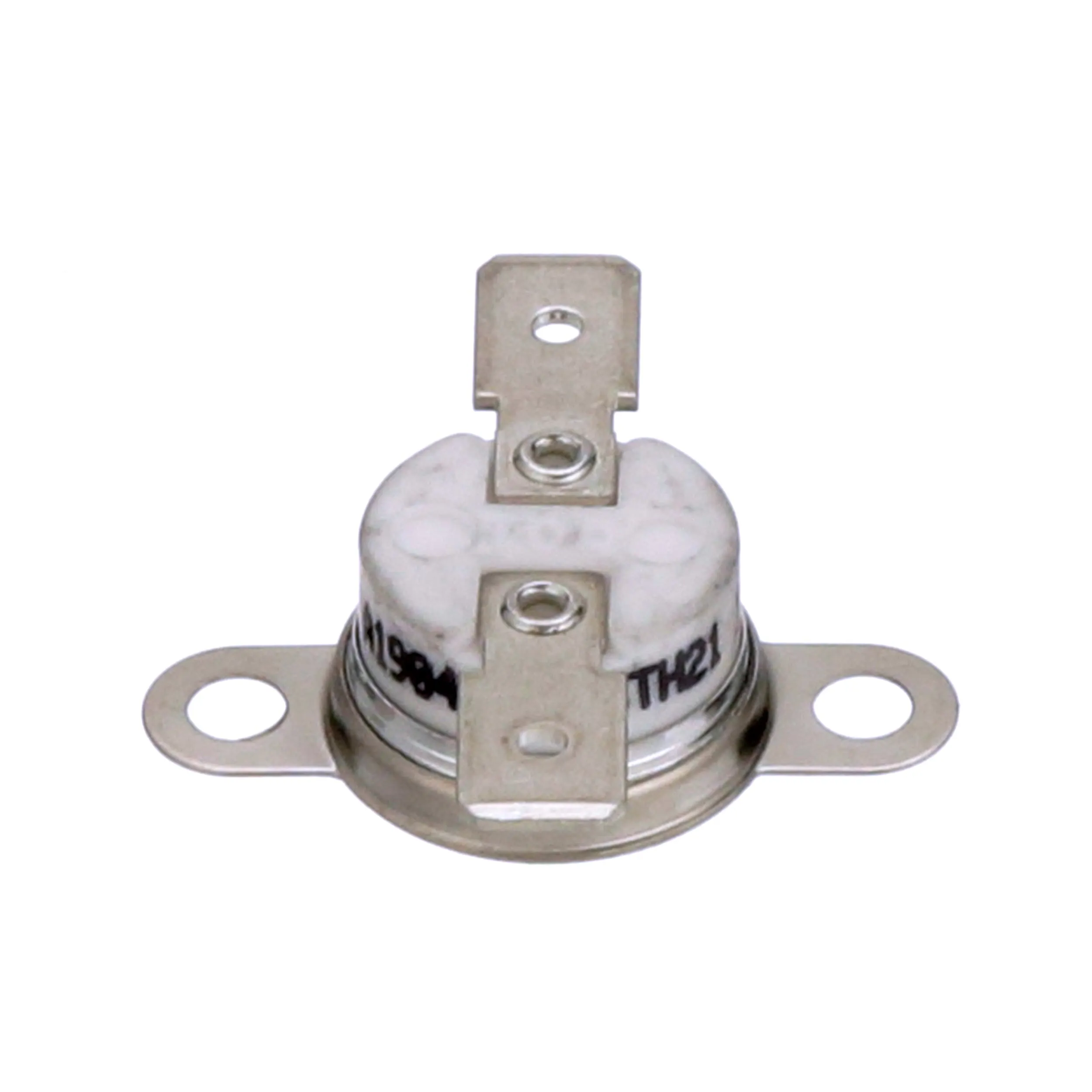

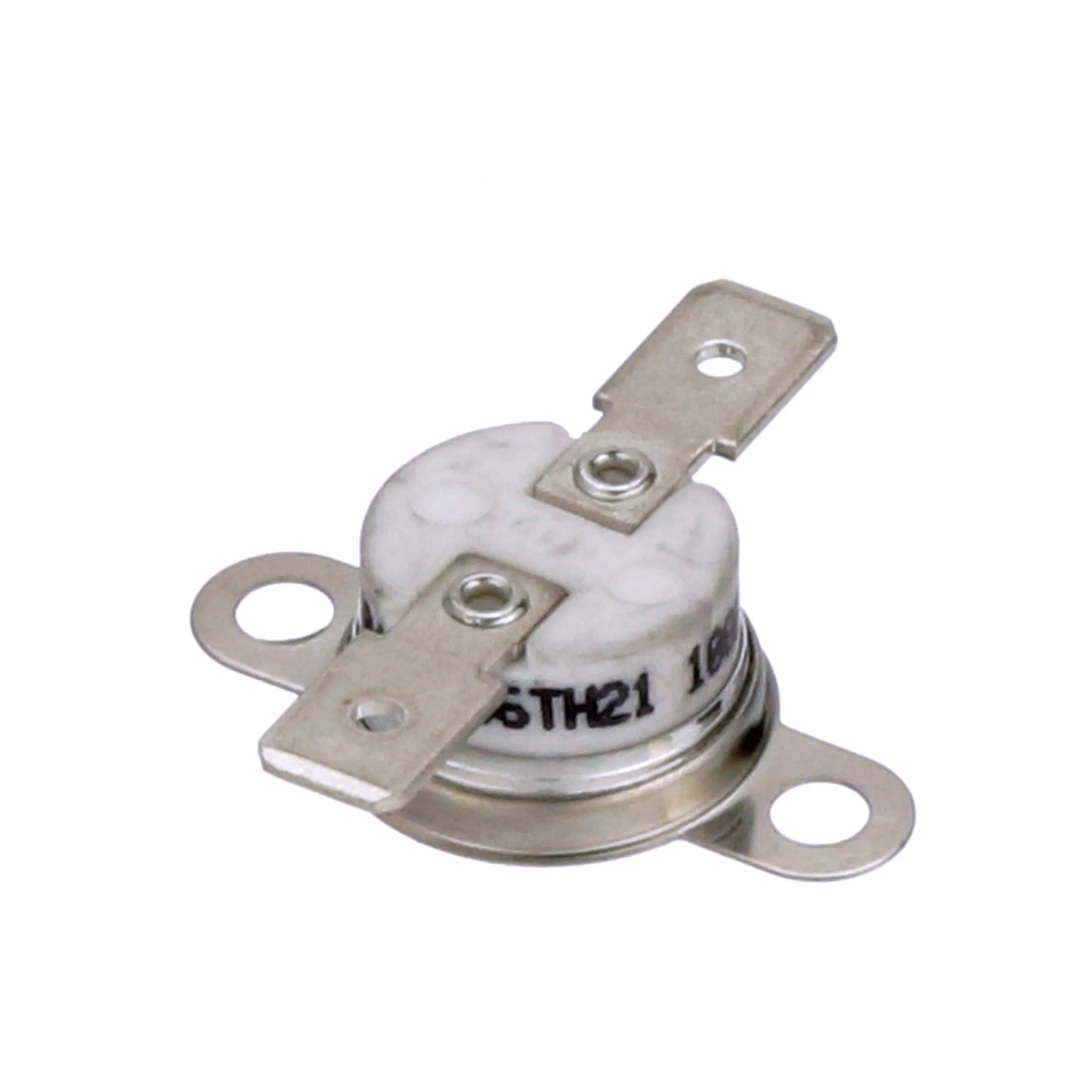

Snap Action Disc Thermostats have proven reliability in a compact, versatile, cost-effective design. High-Speed contact separation provides long contact life.
