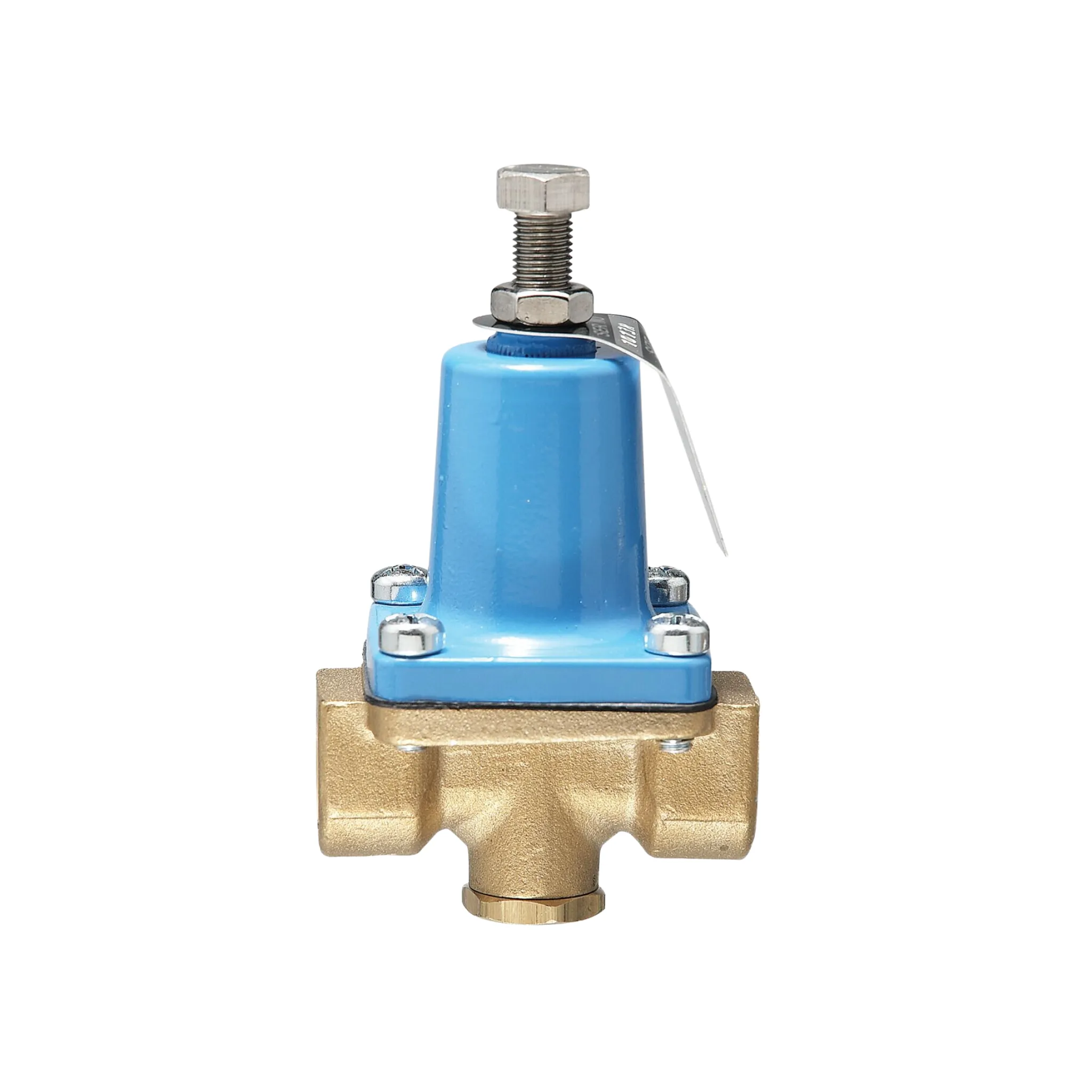

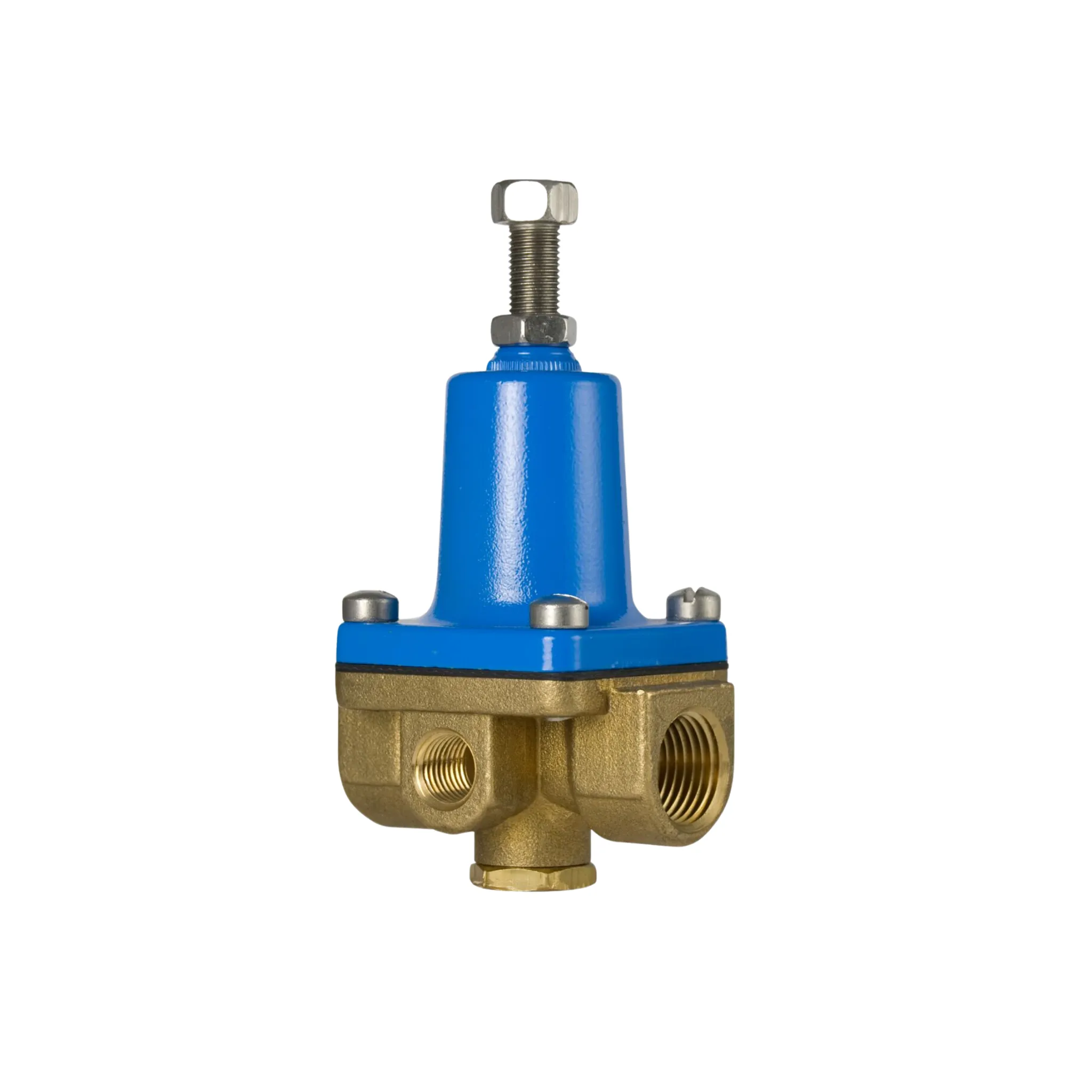

This 1/2 inch lead free small water pressure reducing pilot is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. It consists of a lead free brass body with an adjusting tee handle, NPT threaded female connections, three-way low water pressure gauge port, aluminum spring cage, Buna-N stainless steel disc, and a reinforced Buna-N diaphragm. The reduced water pressure range is 20 to 175 psi (1.4 to 12.1 bar) and is factory set at 75 psi (5.2 bar).

Features:

Lead free brass body construction
Stainless steel stem and spring
Oversized orifice
Tee handle adjustment

Specifications:

Manufacturer: Watts
Manufacturer Part Number: 0009898
Product Type: Small Water Pressure Reducing Pilot
Material: Lead Free Brass Body, Buna-N Disc, Stainless Steel Trim
Valve Style: 3-Way
Gauge Option: Gauge Tapping
Connection Size: 1/2" Female NPT
Operating Temperature Range: 0 to 140 Degrees F
Maximum Working Pressure: 400 PSI
Adjustable Reduced Pressure Range: 20 to 175 PSI
Standard Reduced Pressure Setting: 49 PSI
Dimensions: 2.95" x 5.5" x 2.2"
Weight: 2.0 lb.
