| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | ET2412-024-08-9 |
| Display Type | LED |
| Input Type | NTC |
| IP Rating | IP20, IP65 |
| Length | 3.032" (77mm) |
| Maximum Operating Temperature | 150 °C |
| Minimum Operating Temperature | -60 °C |
| Mounting Type | Panel Mount |
| Number of Inputs | 1 |
| Number of Outputs | 2 |
| Output Type | Relay |
| Shop By | Factory Choice |
| Size | 77 x 35 mm |
| Supply Voltage | 24 VAC/VDC |
| Temperature Operating Range | -60 to 150 °C |
| Temperature Range | -60 to 150 °C |
| Termination | Screw |
| Type | On Off Temperature Controllers |
| UPC Code | 5056279004367 |
| Warranty | 3 Year Warranty |
Overview

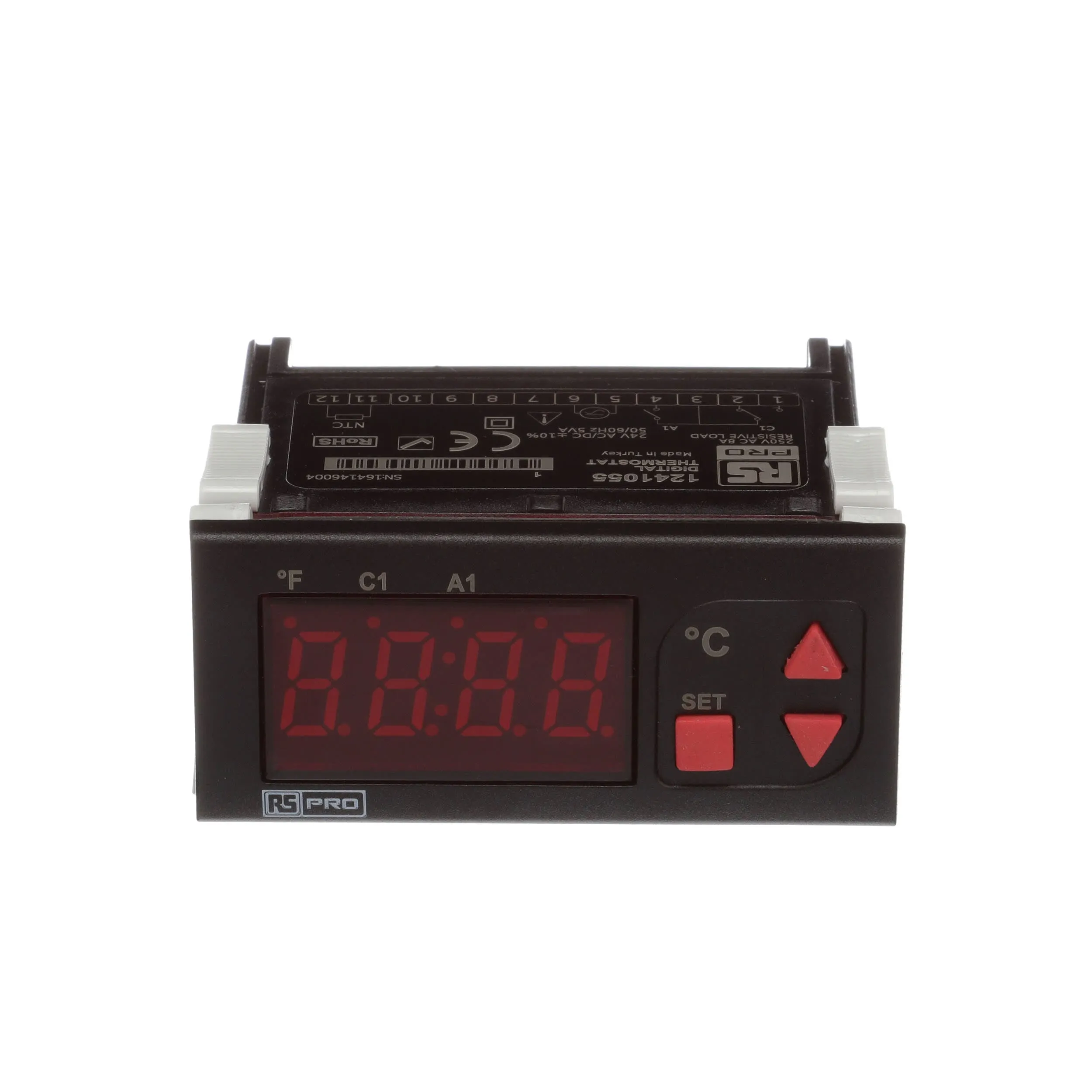

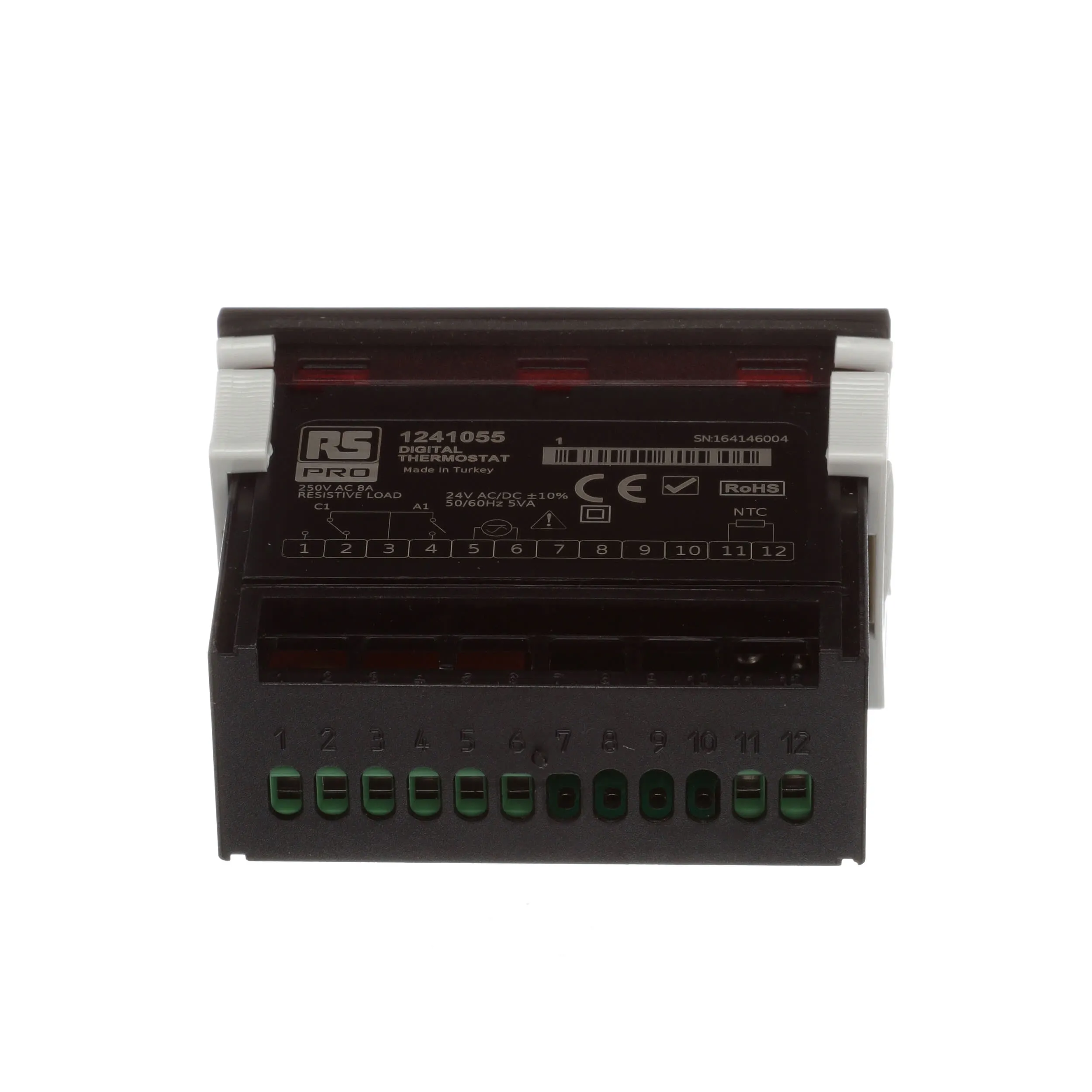

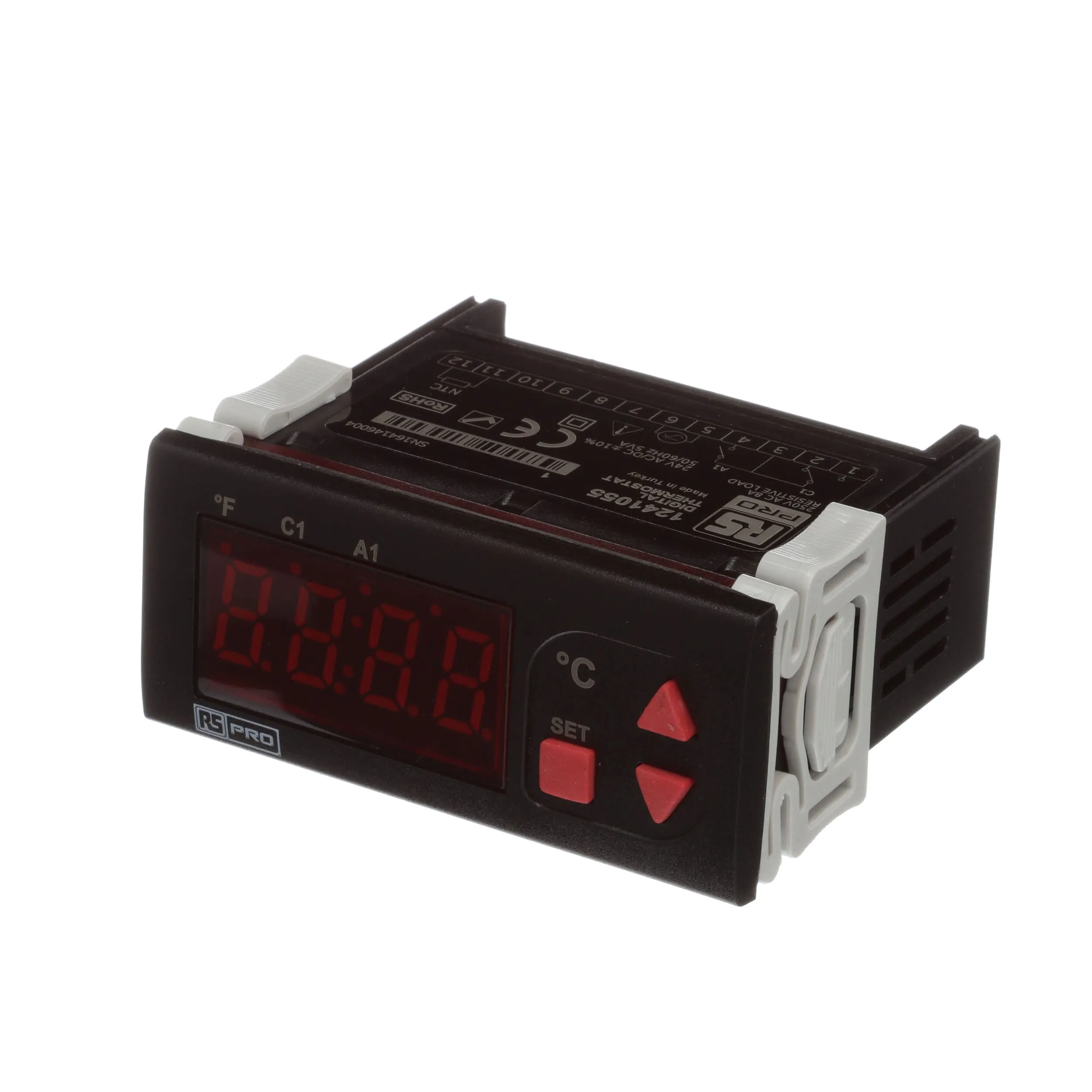

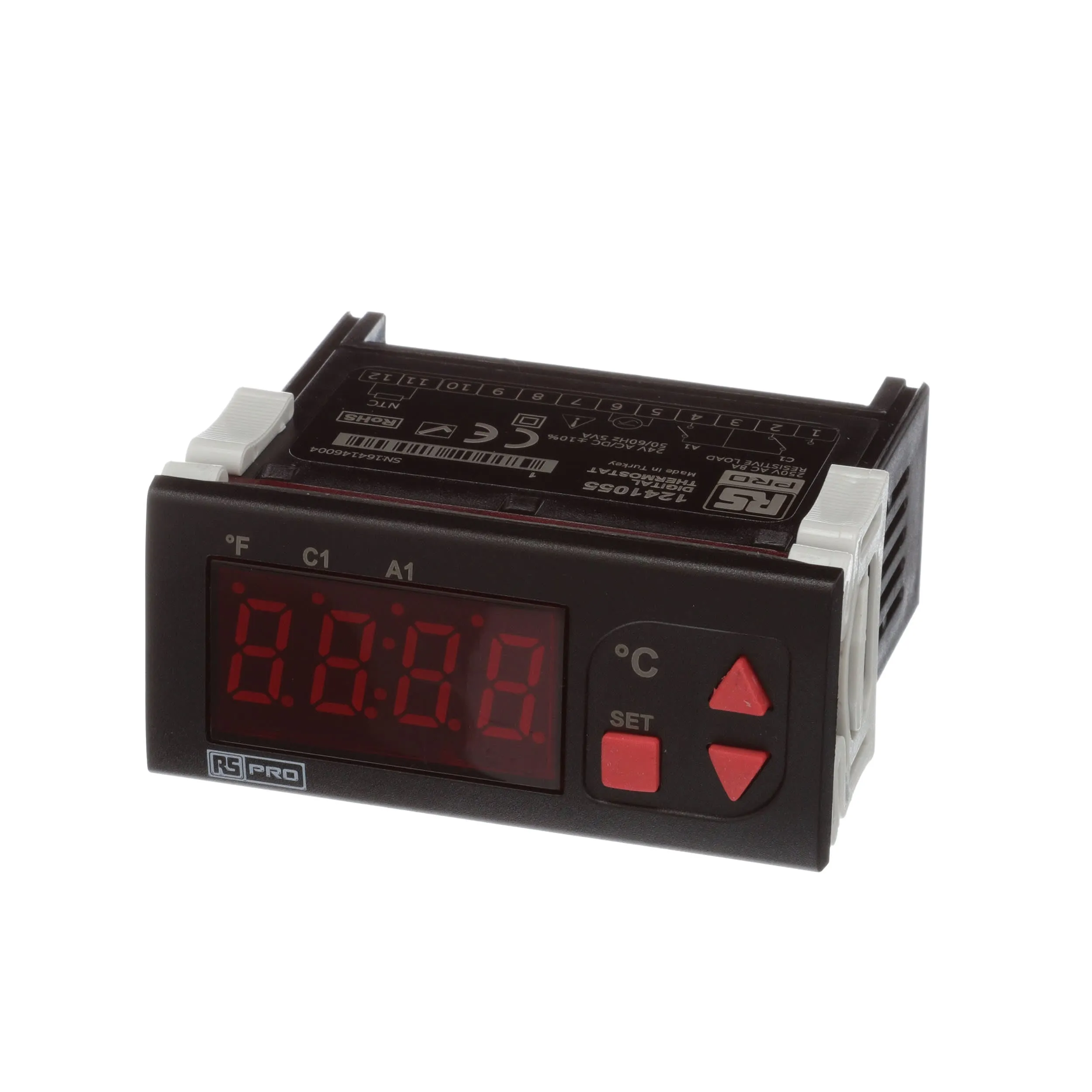

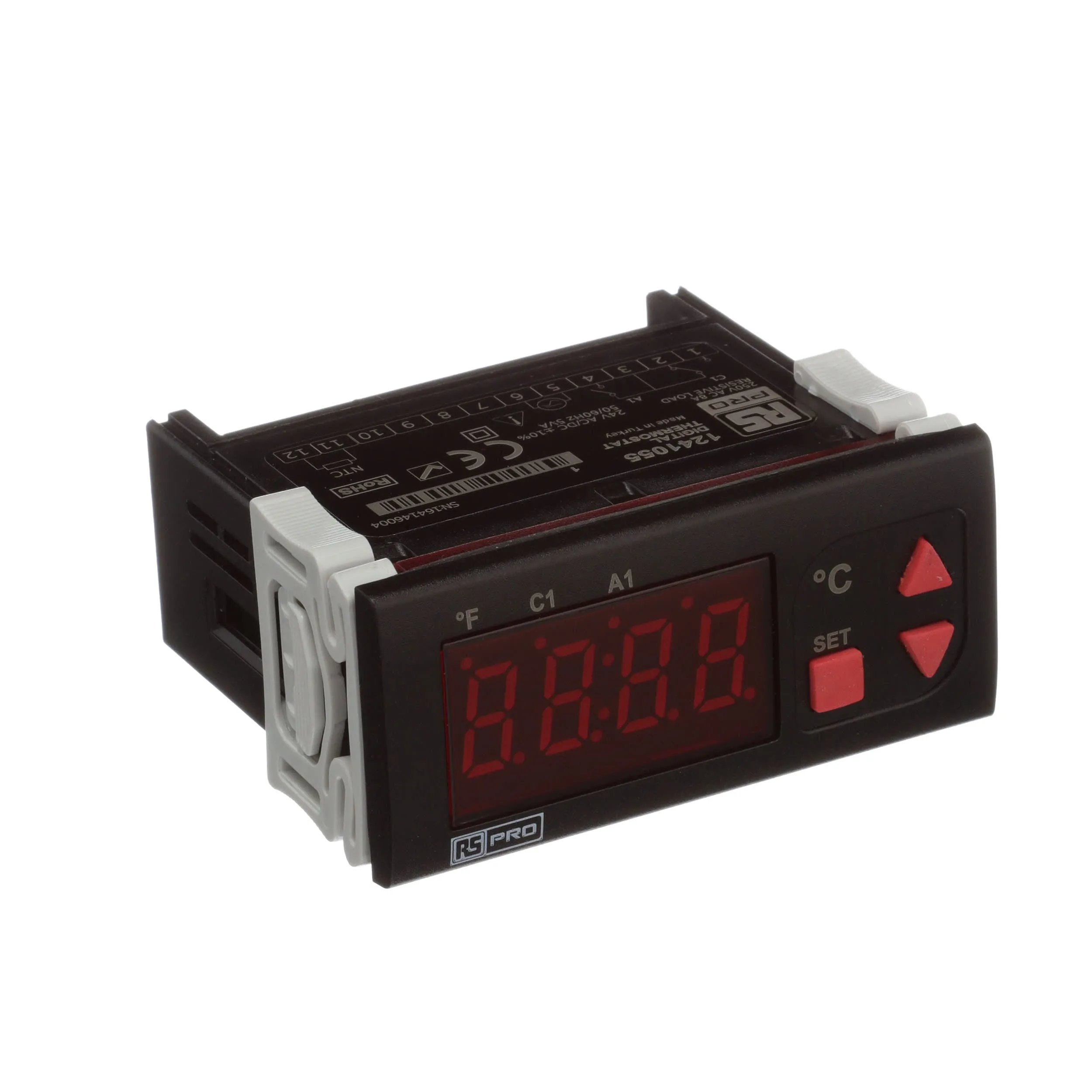

RS Pro On/Off Thermostat- 2 Outputs
RS Pro On/off Thermostats are designed for use with NTC Sensors. Fast to install and easy to configure, the thermostats have a large display that provides great visibility in a compact design.
Due to their design and ease of use, the RS Pro thermostats are ideal for use in industrial or commercial applications.
Features and Benefits
• 35 x 77 mm size
• On/Off control
• Relay output for cooling or heating control
• Alarm relay
• Single NTC probe input
• Range between -60 °C to 150°C
• Probe failure setting, output status can be set to On, Off or Pulse
• Sensor input offset setting
• Selectable heating or cooling control
• Selectable independent, deviation and band alarm types
• 0000 or 000.0 units displayed
• Temperature units °C or °F
• CE certified
