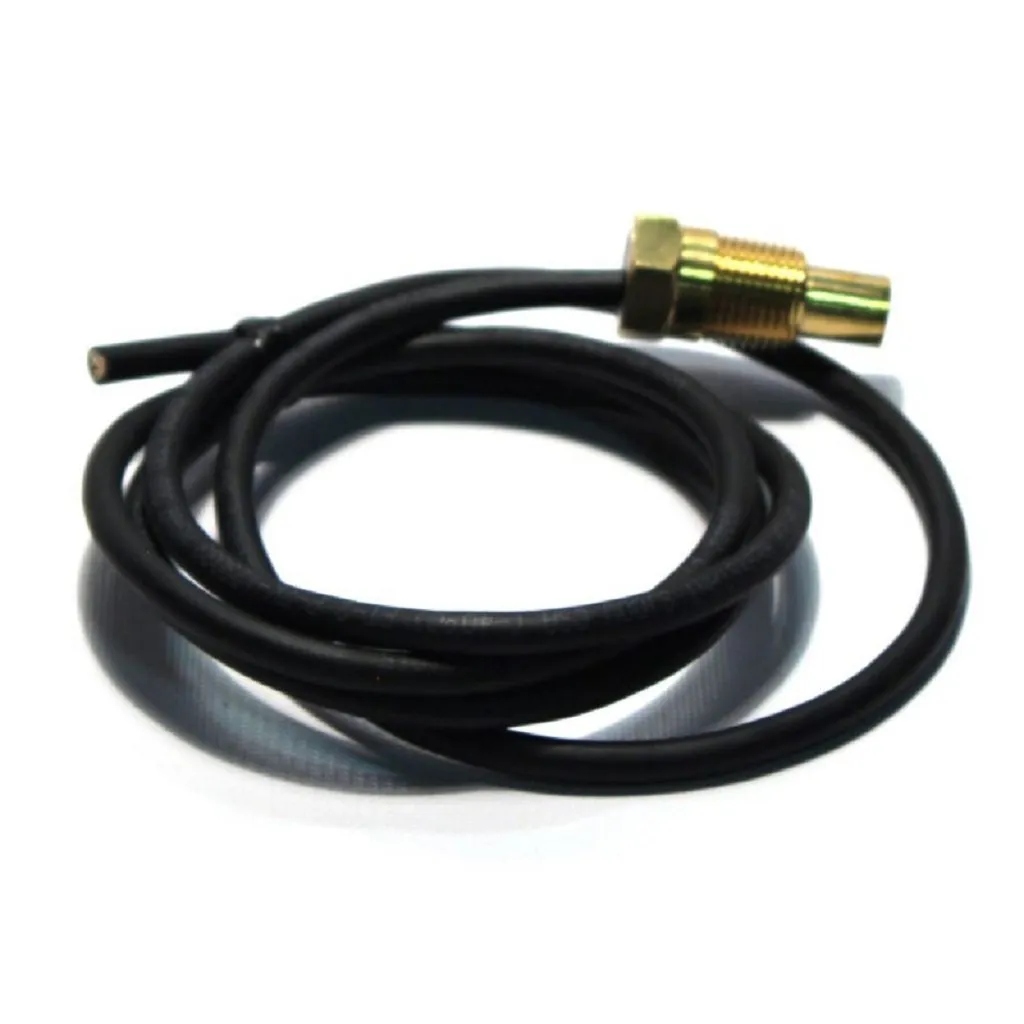

High Limit Switch 8.712-185.0 - 225°F Temperature

High Limit Switch 8.712-205.0 - 330°F Temperature

• 1/2" MPT Probe
• 42" Wire Lead

Operates as safety device to shut off burner to prevent machine (water) overheating flashing to steam

Does not turn back on until water has cooled 50°-70°F

Normally used with other adjustable or fixed range thermostat which regulates water temperature

15 Amp @110V/10 Amp @ 220V

Heavy-duty brass housing (7000 PSI collapse rating)

UL/CSA-rated, bimetal switch components

1/4" male spade lug terminals

1/2" MPT external thread connects for attaching conduit or PVC wire connectors

Temperature 225° Cross Reference Skus:

• 4-0509
• 411231
• 411233
• 411274
• 411277
• 7101230
• 87121850
• 87122970
• 87122990
• 87123100
• 87123120

 Temperature 330° Cross Reference Skus:

• 4-0510
• 411331
• 87122050
• 87123150
